A self closing gate system designed to compliment the Ball-Fence range

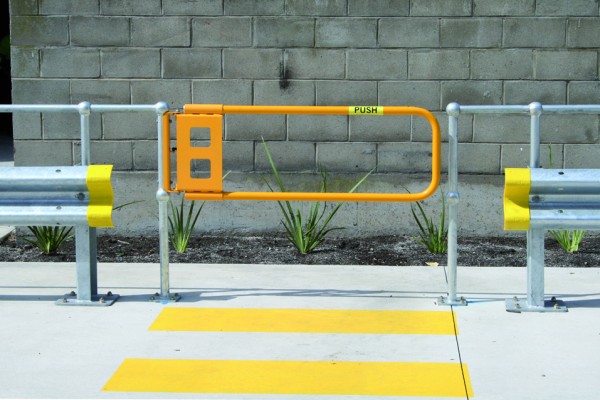

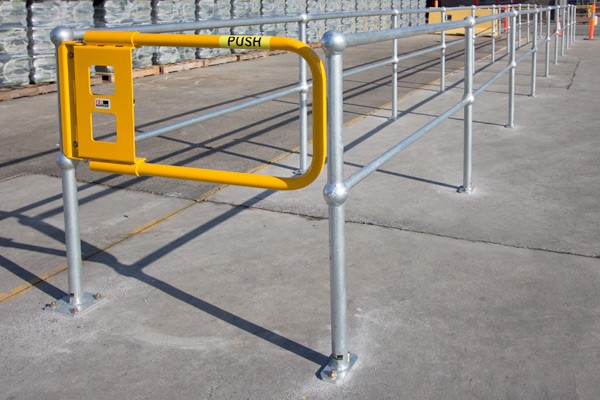

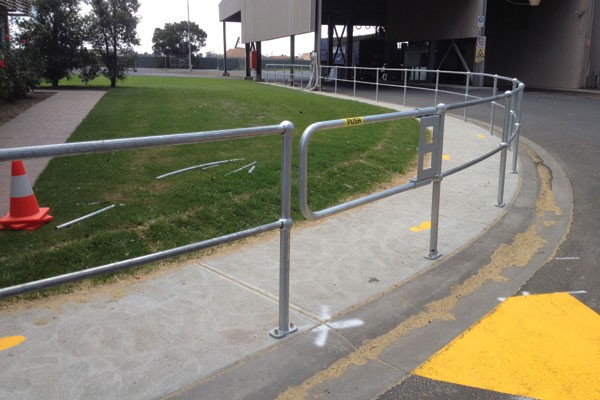

A self closing industrial swing gate system that can be supplied with new Ball-fence installations or retrofitted to existing Ball-fence sites.

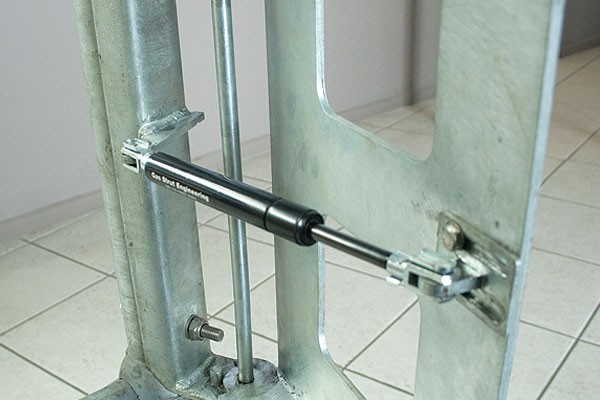

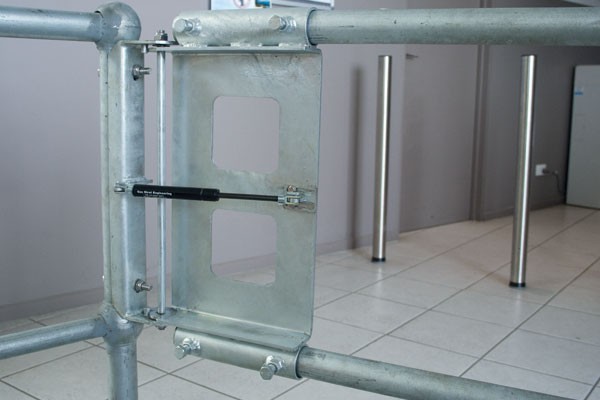

Ball-Fence Gates can be installed in minutes for left or right hand operation, opening inwards or outwards.With adjustable hoop length and return gas strut, it ensures total flexibility of use. Hot dip galvanised or powder coated for indoor or outdoor use.

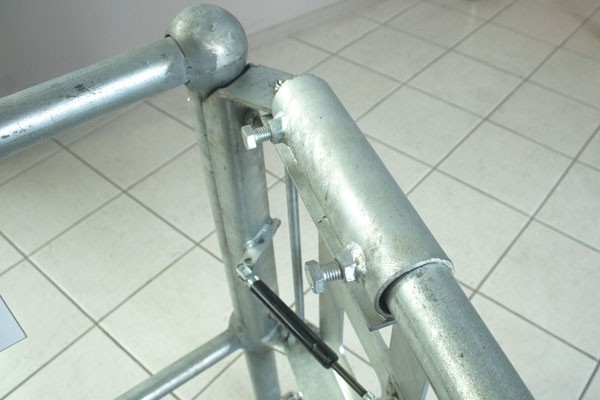

Ball-Fence Gates come complete with a standard galvanised tubular hoop (42.4mm dia.) to suit a maximum 1500mm opening for single gates or 3000mm for double gates. Hoops can be simply cut down to any length and fitted into the receiver tubes on the gate assembly.
Features
- Self-closing operation.
- Compatible with Ball-Fence hand rail system.
- Supplied with 42.4mm diameter galvanised hoop.
- Can swing inward or outward.

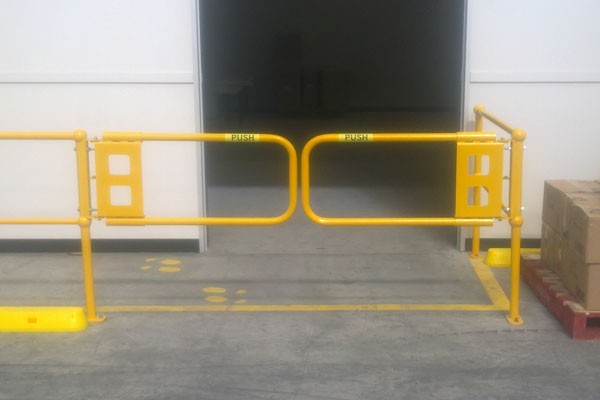

- Can be used in pairs for wider openings.
Technical Specifications
| Description: | Self-closing pedestrian gate. |
| Compatibility: | Ball-Fence hand rail system. |
| Material: | Mild steel. |
| Finish: | Hot dip galvanised or powder coated Yellow. |
| Operation: | Push open assisted closure. |
| Gate swing: | 90 degrees. |
| Gate stop: | Built-in. |
| Opening: | Single gate 1.5 metres. |
| Max. open: | Double gates 3 metres. |
| Min. open: | No minimum. |
| Adjustment: | Cut down on site. |
| Height: | Top rail 1017mm above floor |
| Clearance: | Overhead clearance not applicable. |
| Mounting: | Existing posts, walls, optional posts available. |
| Weight: | 18kgs gate assembly with 1.5 metre hoop. |
